French Fries/Potato Chips Production Line
The capacity can be customized according to your requirements .
We're here to help:Easy ways to get the answers you need.
Introduction

French Fries Making Machine
Our company offer semi-automatic as well as full-automatic production line for producing potato chips and French fries with different capacity. The line can process fresh potato to the potato chips/french fries/crisps as you request.


potato chips French fries production

Description

Potato Chips/French Fries Production Line Process Flow:

Potatoes → Washing → Peeling (potato cleaning and peeling machine) → selecting→ cutting (potato cutting machine) → Washing → Blanching → De-watering → Frying → De-oiling → Seasoning →cooling→ Packaging

Potato Chips/ French Fries Making Machine:

Our Potato Chips Production Line uses fresh potatoes as the raw material. It can produce high quality crisps, French fries and potato chips. We design these potato chips machines with latest and the most advanced technology.



Parameter

Machine

 Specification

Elevator (manual speed adjustment)

Power:0.55kw
Voltage:380v/50Hz
Dimension: 1500x800x1600mm

Washing and  peeling  machine

Power:2.75kw
Voltage:380v/50Hz
Dimension: 2100x900x1500mm

Select line (manual speed adjustment)

Power:0.55kw
Voltage:380v/50Hz
Dimension: 2000x800x900mm

Potato chips cutting machine

Power:1.1kw
Voltage:380v/50Hz
Dimension: 950x800x950mm

Bucket elevator

Power:0.55kw
Voltage:380v/50Hz
Dimension: 1500*800*1500mm

Cleaner

Power:1.1kw
Voltage:380v/50Hz
Dimension: 2000*1000*1300mm

Blanching  washing machine

Power:2.95kw
Voltage:380v/50Hz
Dimension: 2500x1200x1300mm

Blanching machine

Power:60kw
Voltage:380v/50Hz
Dimension: 3000x1200x1400mm

Vibration dewatering machine

Power:0.5kw
Voltage:380v/50Hz
Dimension: 1800*1000*900mm

Air-cooled dewatering machine

Power:5kw
Voltage:380v/50Hz
Dimension: 3000x1200x1400mm

Elevator

Power:0.75kw
Voltage:380v/50Hz
Dimension: 1500*800*1300 mm

Electric heating fried line

Power:80kw
Voltage:380v/50Hz
Dimension: 3000x1200x2400mm

Vibration degreasing machine

Power:0.5kw
Voltage:380v/50Hz
Dimension: 1500x1000x1300mm

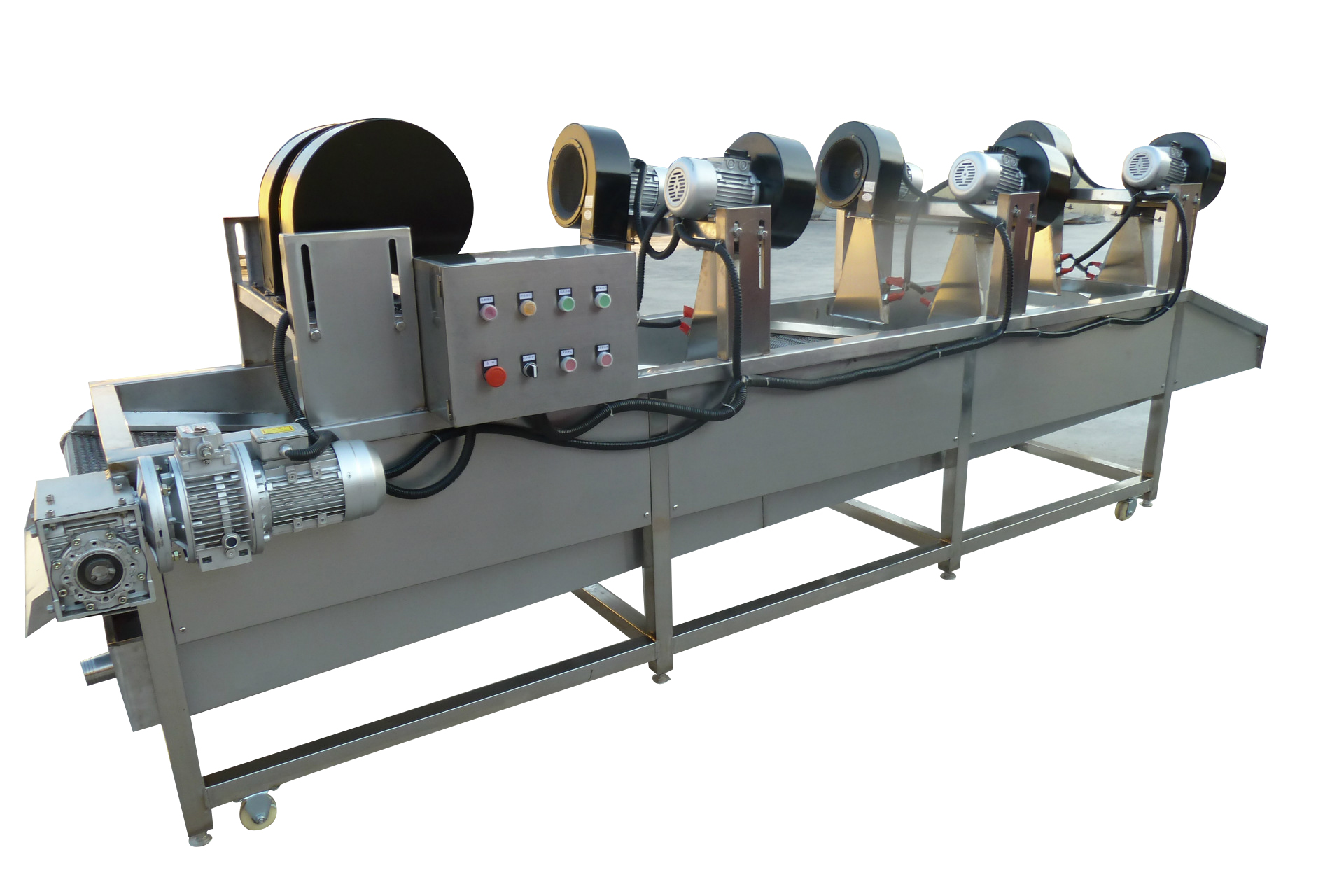

Air dried machine

Power:5kw
Voltage:380v/50Hz
Dimension: 3000x1200x1600mm

Elevator

Power:0.75kw
Voltage:380v/50Hz
Dimension: 2000x800x2200mm
